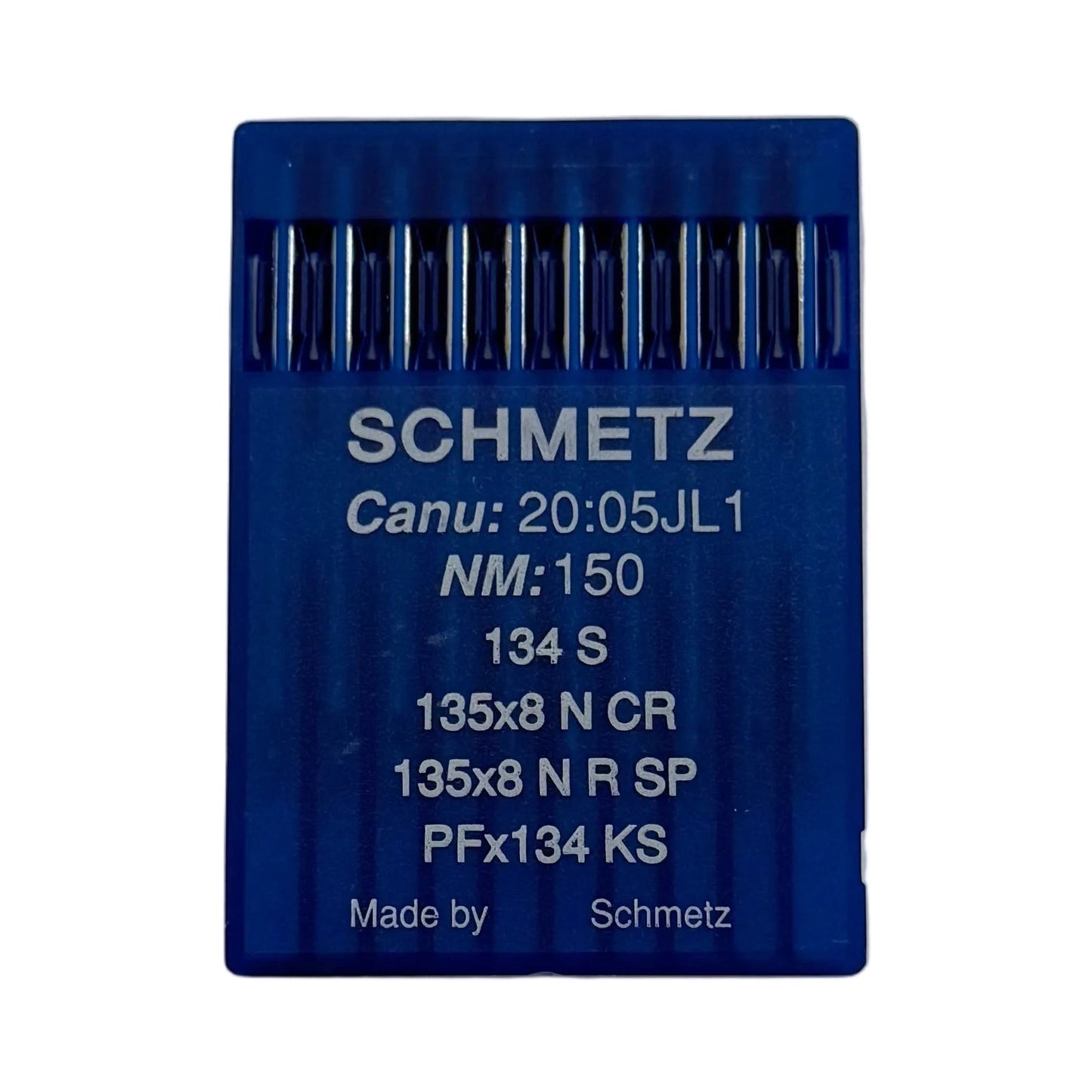

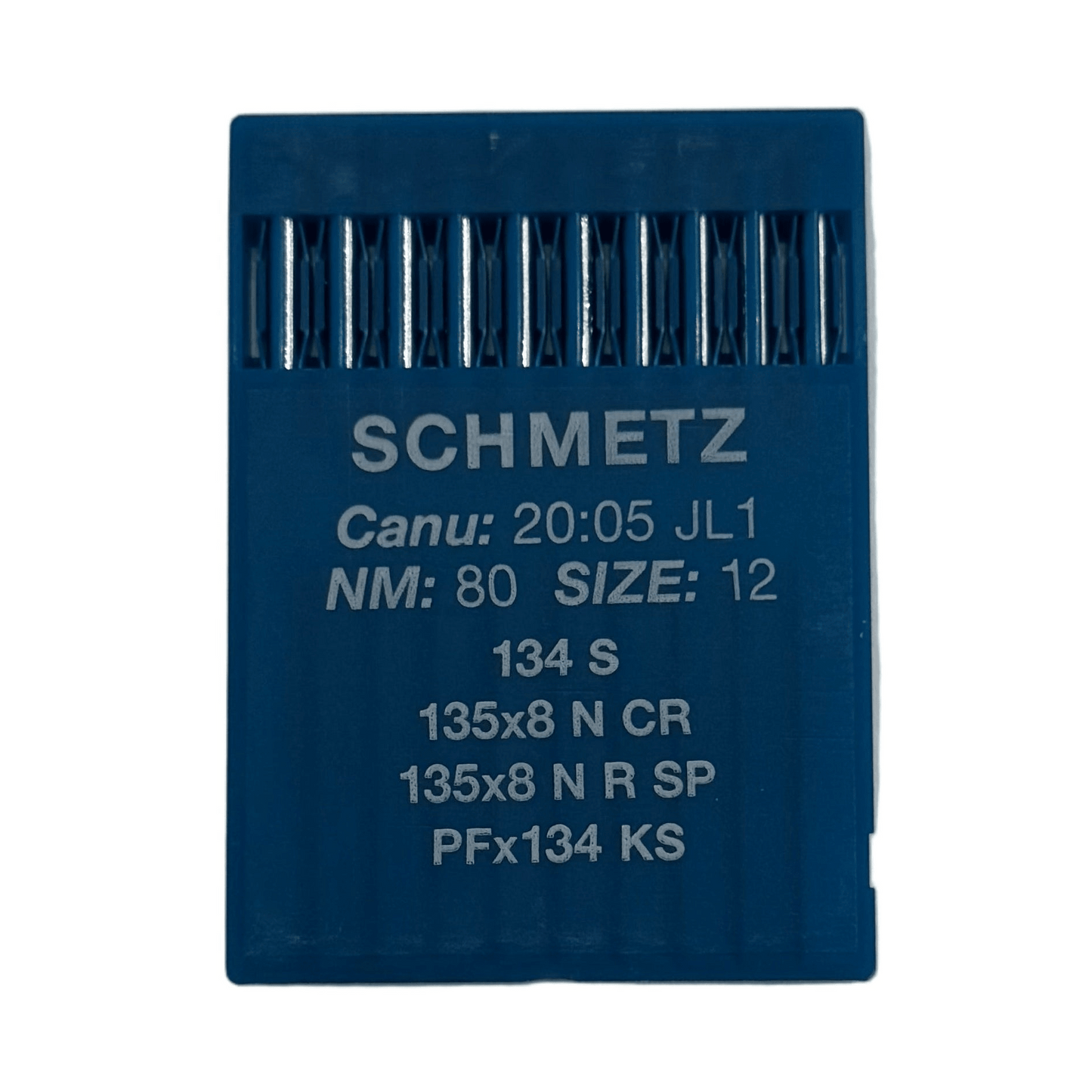

Industrial Sewing Machine Needles SCHMETZ DPx5 (134) S for Leather - 10 pcs.

SCHMETZ DPx5 S are industrial sewing machine needles for leather with a S (Narrow Cross Point) cutting tip. This needle tip creates a very straight, clean stitch because the cut in the material is made perpendicular to the thread direction. Perfectly suited for precise seams on leather without damaging the material. The chrome coating provides less friction and higher durability during intensive work.

🧵 Suitable materials

• Natural and synthetic leather
• Leather products with multiple layers
• Textiles combined with leather (linings, bags, accessories)
• Car upholstery, bag parts, belts

✨ Where the S needle shines

• Very straight, visually clean seams – suitable for both durability and design
• Bags, belts, wallets, and other leather accessories
• Footwear and leather goods industry
• Sewing car seats and other thicker materials

🎯 S (Narrow Cross Point) advantages

• Very straight stitch line – without lateral slant
• Clean cut – does not pull or tear the leather
• Excellent for coarse, pronounced decorative seams
• Stable stitch even in thicker materials

🧶 Recommended threads for leather

Choose the needle size and thread size according to the material thickness.

🔧 Compatibility

Suitable for industrial lockstitch machines using 134 series needles.

Needle systems (equivalents): 134 S, 135X8 N CR, 135X8 N R SP, PFX134 KS, DPx5 S

📐 Technical data

• CANU: 20:05JL1
• Tip type: S – Narrow Cross Point (very straight cut)
• Coating: Chrome
• Shank Ø: 2.0 mm
• Total length: 38.3 mm
• Length to eye: 33.9 mm
• Shank flattening: none (no flattening)
• Blade shape: straight
• Number of grooves: 1
• Stitch type: Lockstitch
• Packaging: 10 needles

ℹ️ Note

The visual appearance of seams in the images refers to machines with side-thread insertion. The seam effect may vary slightly on front-thread insertion machines. If a slant stitch is needed, choose LR or LL cutting tips.

✅ Why these needles?

• Perfect for straight, pronounced seams on leather
• Very durable, suitable for long-term industrial sewing
• Compatible with all popular DPx5 series lockstitch machines
